Steam Cleaning Studies

Steam as a Food Processing Cleaning Agent

With food-borne diseases on the rise1 according to the CDC, proper sanitation has never been more important. Steam is a cost-effective manner of quickly treating all types of surfaces clean from the nanoscale of viruses to the larger scale of grease. SaniZap’s quick startup time and high mobility allow it to be used and put away before other steam generators have warmed up. Our revolutionary, patented technology allows the MightySteam® to continuously produce 1112°F steam in about a minute.

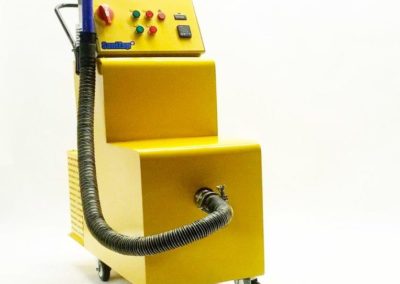

SaniZap-600-4-240
Grill Cleaning with SaniZap
Wooden Chair Sanitizing

Steam Cleaning Studies including Historical Ones.

MightySteam® doesn’t need the help of chemicals to clean, it uses pure, clean steam as the agent. The MightySteam’s high-temperature steam can impact cleanliness of surfaces by using its intense thermal energy. More than likely fewer chemicals are needed.

MightySteam® cleans with lower resource consumption than traditional cleaning agents. SaniZap® utilizes only 1kW- 4.5 kW  of power, compared to steam boilers that can consume 7-15kW or more of power. The SaniZap® superheated steam is dry, leaving behind just a trace amounts of clean water when used properly.   Sometimes the use of a good wipe (towel) is required after the steam treatment but most often it is dry.

    • The optimal surface disinfectant for the most demanding hospital environment would have these qualities: Easy to use, quick disinfection, broad kill range, reduce potential of cross-contamination, non-toxic and will not damage surfaces.
    • Since the active agent is not a biocidal or toxic chemical (just H2O is the active ingredient) disinfection is exceedingly fast and broad-spectrum. There is no chance of introducing chemical cross-resistance to antibiotics.   Surfaces do not become sticky, no stain, or discoloration over time.
    • Staff can disinfect as frequently as necessary without long-term chemical exposure concerns.
    • The steam cleaning tool is hot, so the potential for cross-contamination from surface to surface or room to room is greatly reduced.  This is in sharp-contrast to a fog, spray and wipe approach, which could possibly spread pathogens if the disinfectant is overused or inactivated for any reason including staleness.
    • By using proper steam (200°C) any high-touch surfaces can be disinfected on an hourly basis without damage to the surface. Prevents chemical induced irritation to sensitive populations or long-term risks to customers or staff.
    • One has to consider steam sanitizing from an objective, scientific perspective: It is a new technology with the potential to reduce pathogen transmission within your facility.
    • As steam inactivates microbes very rapidly (seconds with steam compared to minutes for many chemicals), steam is considered a high productivity method.
    • The best way to tell if your steam is antimicrobial is to do a complete bacterial or viral test with a microbiologist in attendance. The efficacy of steam can also be gauged with Class 4 and Class 6 steam indicators. Good quality steam should turn the strip black quickly (within seconds). The steam should not leave any wet residues.

      If you need antimicrobial steam it should turn indicator black

      If you need antimicrobial steam it should turn indicator black.

    The SaniZap® steam technology is expected to significantly benefit Sanitation.

  • Steam also cleans grime. It removes dirt, loosens stains, and powers through grease and grime without the elbow grease needed in traditional cleaning. This means less time scrubbing.
  • If you have a pet (or a teenager!) – be happy that steam removes odors from soft surfaces such as mattresses, carpets and upholstery without any new allergens.
  • Everyone is increasingly concerned about the possible health ramifications of chemical residue and gasses in common cleaning products. There is no need for chemicals or detergents when steam cleaning.
  • Steam can be used on just about any hard or soft surface as long as it is properly deployed. It’s a great cleaning tool from floor to ceiling.
  • Here is just a partial list of things that you can clean and disinfect with steam: sealed flooring (hardwood, tile, natural stone, laminate, vinyl), toilet and surrounding area, counter tops, oven, stove top, pet bedding, mattresses, upholstery, children’s toys, refrigerator, pantry shelves, and laundry areas.  Each type requires some experience.
  • Cleaning with steam replaces expensive cleaners and disinfectants.  No need for special rooms (cold and dark) to store the chemicals.

The Science of Steam Cleaning,  Historical Literature.

For sometime now steam has been recognized as the king of sanitation. Today of course rapid high temperature steam machines are available which were not avaibale in the past.  The difference is that the speeds of bacterial elimination are much higher now.  Regardless it makes a useful  read to see what was known.

Several reports (studies2) utilizing 248°F  superheated steam have been published to test the effects on a variety of common bacteria.  As the steam temperature rises that contacts microbes, the time needed to kill bacteria decreases (thermal kinetics often have an exponential impact).  In the study2, 18-hour broth cultures of Enterococci, E. Coli, CNS, and Staph aureus were used. Each culture was placed in one of 6 sterile petrie dishes. Each plate, minus the control, was exposed to 1,2,3,4 or 5 seconds of superheated 248°F  steam. After being exposed to the steam, all plates were cultured for 48 hours at 99°F (37°C), then colony counts were performed.





Results

Colony Count per ml

OrganismControl1 Sec2 Secs3 Secs4 Secs5 Secs
Entercoccus>100000000
E Coli>100020000
CNS>100030000
Staph aureus>100<100020000

The table above illustrates that minimal colonies existed in the dish treated for 1 second, and no colonies existed in any dishes treated at 248°F (120°C) for 2 seconds or longer. This is compared to the control dish that featured over 1000 colonies for each type of bacteria except for Staph aureus, which had between 100-1000 colonies when left untreated.

The study also entailed domestic applications of steam. Common household areas including a toilet seat, toilet bowl rim, sink basin, sink faucet, bathtub, shower tile/grouting, and a showerhead.  The same 248°F  steam for this experiment and allowed 30 seconds of total cleaning time for each object. Surfaces were swabbed prior and post cleaning and were incubated for 48 hours at 99°F (37°C) to allow for colony growth.

Results

Site: Bathroom/WCPre cc/mlPost cc/ml% Survival
Toilet seat15000
Toilet bowl rim5000003000.6
Sink Basin50000010000.2
Faucet60000200.03
Bath interior500003000.6
Shower Tile/grout500000150003
Shower Head200000



A 30 second 248°F (120°C) steam treatment in this experiment was shown to be from 97-100% effective at killing micro-organisms. The highest bacteria survival rate of 3% was found on the shower tile/grout. On other surfaces, less than 1% of bacteria remained after receiving steam treatment.  With higher temperatures, the efficiency is expected to increase.

Superheated Steam Cleaning Application Efficiency3

University of Washington’s Odegard Library, used by up to 15,000 students each day, conducted a trial comparing a superheated steam cleaning system and their existing cleaning methods. During the six week trial, custodians used a superheated steam generator to clean and sanitize restrooms, including tile, grout, walls, baseboards, plumbing fittings, and fixtures. The time took and cleanliness factors were recorded before and after cleaning, then compared to their existing cleaning routines. Superheated steam took on average 42.5 minutes per restroom, compared to 46 minutes for the existing program. Time savings were commonly attributed to less bending, scrubbing, and downtime while waiting for traditional chemicals to disinfect surfaces  After cleaning, germ hot spots were measured. Superheated steam cleaned faucet handles and paper towel dispenser handles had 1/10th as many germs as when cleaned with traditional methods. Also to be considered are the less obvious benefits of steam over traditional methods, such as less exposure to chemicals, fewer chemicals to purchase and higher worker morale due to improved efficiency.

A test conducted at the University of Washington’s Odegard Undergraduate Library, which is used by as many as 15,000 students daily, provides evidence of the benefits of a specialized steam vapor system used by trained custodians.

Over six weeks, custodians used the system to deep clean and sanitize restrooms (including floor tile and grout, wall areas, baseboards, fittings, and fixtures). Cleaning times and degree of cleanliness were recorded and contrasted with traditional cleaning methods. Cleaning time was reduced (42.5 minutes vs. 46 minutes) with the steam vapor system. Custodians attributed the time savings to less squatting and stooping to clean hard-to-reach places behind toilets, and under sinks and urinals. With no residual water on floors, drying time also was reduced.

Swab tests compared the degrees of cleanliness of the two cleaning methods. Steam cleaning resulted in cleaner fixtures and surfaces. Steam-cleaned faucet handles and towel dispenser handles, for example, were more than 10 times cleaner than those cleaned with traditional methods. The steam vapor method also eliminated workers’ exposure to chemicals and resulted in a “pride of accomplishment factor” for the custodians.

Read more……………………





High-Temperature steam is a known antimicrobial heat agent.  It appears that bacteria begin to die when exposed to 248°F (120°C).  The rate is very slow at this temperature – the rate appears to increase with temperature of the steam. At 200°Cand above  the antimicrobial rate is acceptable.  The SaniZap® deliver a highly effective up to 1112°F (600°C) steam and versatile wands.  The SaniZap® is a good addition for any facility that requires a clean working environment, including hospitalslaboratories and food handling plants. The SaniZap® offers quiet operations and the highest steam temperatures available in a portable steam generator.  These are new steam jet spray temperatures and it is expected that many more than the studies discussed below will become available over time.

With MightySteam® there are no hard particles or ice particles that impinge on the surface being cleaned.  No chemicals either.  So no erosion or spoilage when done properly.

Steam as a Sensitive-Environment Cleaning Agent

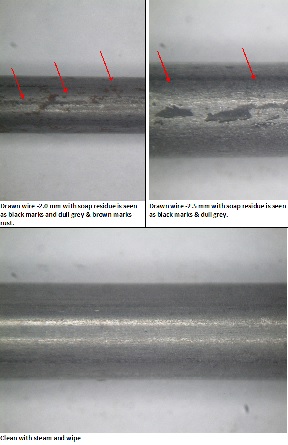

With a rapid startup time, quiet operations and low-velocity steam, the SaniZap® can operate in most environments without substantial process impact. With a highly controlled output, the MightySteam® can minimize the risk of cross-contamination resulting from errant over spray. The MightySteam’s steam is also strong enough to quickly contact doorknobs, tables, counters, and other frequently contacted surfaces.  Please see pictures below of steam cleaning of food filters within a few minutes.
